DHT22 Temperature Humidity Sensor
DHT22 Temperature Humidity Sensor
The DHT22 (AM2302) is a low-cost digital temperature and humidity sensor with a single wire digital interface. It uses a capacitive humidity sensor and a thermistor to measure the surrounding air and spits out a digital signal on the data pin (no analog input pins needed). Supports All ESP32 Modules, ESP8266, Arduino, STM32, and other Micro Controller with 12C etc.
| Min.Qty | Unit Price |
|---|---|
| 1 | Rs. 1,280.00 |
| 10 | Rs. 1,260.00 |
| 100 | Rs. 1,250.00 |
Rs. 1,280.00
Product Details
Not Available
Sensors
DHT22 Temperature Humidity Sensor
Temperature measurement range: -40 ° C ~ 80 ° C
Humidity measurement range: 0% to 99.9% (0°C-50°C range)
Temperature measurement error: ±0.5°C max ±1°C; Humidity measurement error: ±2%
Working voltage: 3V--5.5V
Resolution: 16 bits
Sampling period: 2s;
Output signal: digital signal via single-bus
Sensing element: Polymer capacitor
Supports: All ESP32 Modules, ESP8266, Arduino, STM32, and other Micro Controller with 12C etc.
Tags
Temperature
Humidity
DHT22
Temp
Humidity Sensor
Temperature Humidity Sensor
DHT22 sensor
sensor
sensor Sri lanka
Related Items
Hx711 module + pressure sensor kit
Rs. 142.00
Rs. 140.00 Rs. 142.00 (each ≥ 100 Units)
This weight sensor kit is equipped with ...
3 Axis Analog Gyroscope Sensor
Rs. 510.00
Rs. 505.00 Rs. 510.00 (each ≥ 10 Units)
The MPU-6050 sensor module contains an a ...
MQ-5 LPG Gas Sensor
Rs. 480.00
Rs. 475.00 Rs. 480.00 (each ≥ 100 Units)
MQ-5 gas sensor has high sensitivity to ...
RS485 3 IN 1 NKP RS485 waterproof soil sensor
Rs. 5,500.00
3 IN 1 soil npk storage RS485 waterproof ...
MQ-3 Alcohol Sensor
Rs. 410.00
Rs. 405.00 Rs. 410.00 (each ≥ 100 Units)
MQ-3 gas sensor has high sensitity to Al ...

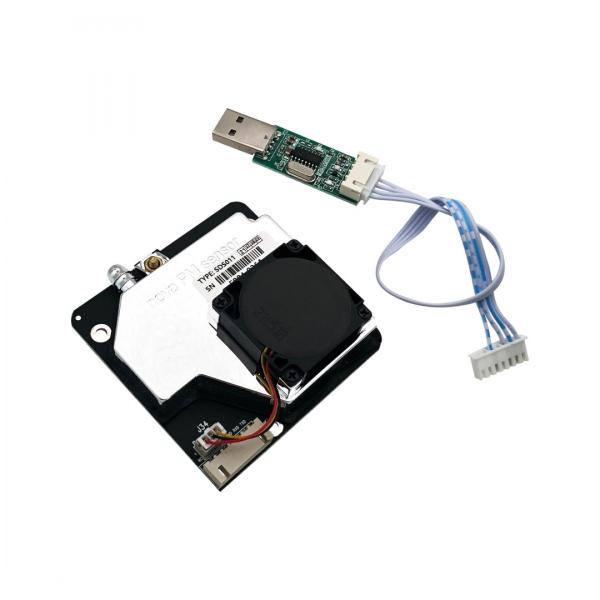

Nova PM Sensor SDS011 - Air quality sensor - High precision laser PM2.5 Dust test module
Rs. 11,500.00
Air quality sensor with high precision ...
DHT11 Temperature And Relative Humidity Sensor
Rs. 384.00
This is a DHT11 Temperature And Humidity ...

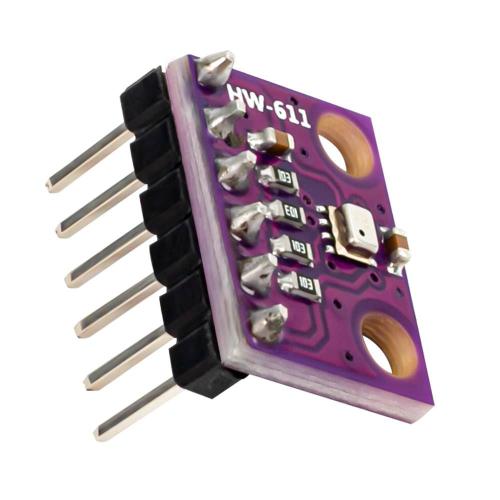

BMP280-3.3 Precision Atmospheric Pressure BMP280-3.3 Precision Atmospheric Pressure Altimeter Sensor
