ESP32-WROOM-S3
ESP32-WROOM-S3

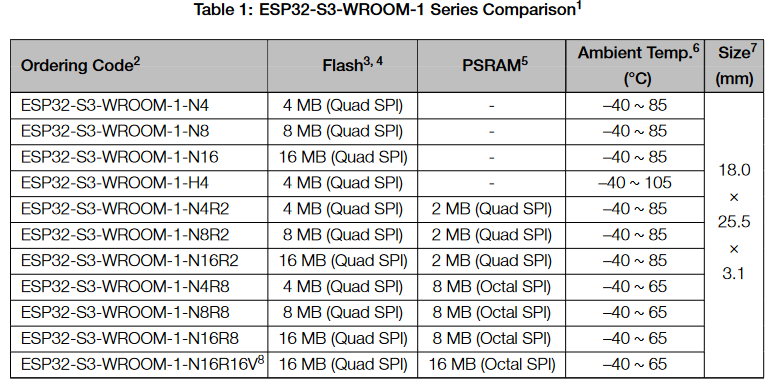

ESP32-S3-WROOM-1 and ESP32-S3-WROOM-1U are two powerful, generic Wi-Fi +Bluetooth LE MCU modules that are built around the ESP32-S3 series of SoCs. On top of a rich set of peripherals, the acceleration for neural network computing and signal processing workloads provided by the SoC make the modules an ideal choice for a wide variety of application scenarios related to AI and Artificial Intelligence of Things (AIoT), such as wake word detection, speech commands recognition, face detection and recognition, smart home, smart appliances, smart control panel, smart speaker, etc. ESP32-S3-WROOM-1 comes with a PCB antenna. ESP32-S3-WROOM-1U comes with an external antenna connector. A wide selection of module variants are available for customers as shown in Table 1 and 2. Among them, H4 series modules operate at –40 ~ 105 °C ambient temperature, R8 and R16V series modules operate at –40 ~ 65 °C ambient temperature, and other module variants operate at –40 ~ 85 °C ambient temperature. For R8 and R16V series modules with Octal SPI PSRAM, if the PSRAM ECC function is enabled, the maximum ambient temperature can be improved to 85 °C, while the usable size of PSRAM will be reduced by 1/16. Supports All ESP32 Modules, ESP8266, Arduino, STM32, and other Micro Controller with 12C etc.
| Min.Qty | Unit Price |
|---|---|
| 1 | Rs. 2,150.00 |
| 10 | Rs. 2,145.00 |
| 100 | Rs. 2,140.00 |
Rs. 2,150.00
Product Details
Development Boards
ESP32-S3-WROOM-1
CPU and On-Chip Memory
• ESP32-S3 series of SoCs embedded, Xtensa®
dual-core 32-bit LX7 microprocessor (with single
precision FPU), up to 240 MHz
• 384 KB ROM
• 512 KB SRAM
• 16 KB SRAM in RTC
• Up to 16 MB PSRAM
Wi-Fi
• 802.11 b/g/n
• Bit rate: 802.11n up to 150 Mbps
• A-MPDU and A-MSDU aggregation
• 0.4 μs guard interval support
• Center frequency range of operating channel:
2412 ~ 2484 MHz
Bluetooth
• Bluetooth LE: Bluetooth 5, Bluetooth mesh
• Speed: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Advertising extensions
• Multiple advertisement sets
• Channel selection algorithm #2
• Internal co-existence mechanism between Wi-Fi
and Bluetooth to share the same antenna
Peripherals
• GPIO, SPI, LCD interface, Camera interface,
UART, I2C, I2S, remote control, pulse counter,
LED PWM, full-speed USB 2.0 OTG, USB
Serial/JTAG controller, MCPWM, SDIO host,
GDMA, TWAI® controller (compatible with ISO
11898-1), ADC, touch sensor, temperature
sensor, timers, and watchdogs
Supports: All ESP32 Modules, ESP8266, Arduino, STM32, and other Micro Controller with 12C etc.
Tags
WROOM
ESP32
ESP32-S3
ESP32 WiFi Module Sri Lanka
ESP32 WROOM
ESP32 Blutooth
ESP32 WiFi
Related Items
ESP32-C3 Development Board(Bluetooth WiFi module))
Rs. 760.00
ESP32-C3 Super Mini is a compact IoT min ...
ESP32 DEV KIT V1
Rs. 1,500.00
Rs. 1,350.00 Rs. 1,500.00 (each ≥ 10 Units)
The Esp32 DevKit v1 is one of the develo ...
LORA RA-02
Rs. 1,300.00
Rs. 1,280.00 Rs. 1,300.00 (each ≥ 10 Units)
Ra-02 is a wireless transmission module ...
Arduino Nano
Rs. 784.00
Rs. 782.00 Rs. 784.00 (each ≥ 100 Units)
Arduino NANO Version 3 is the open-sourc ...
356-ESP-PROG Hardware Debuggers ESP-PROG, development
Rs. 3,900.00
Hardware Debuggers ESP-PROG, development ...
ESP8266 DEV KIT
Rs. 795.00
Rs. 790.00 Rs. 795.00 (each ≥ 10 Units)
NodeMCU ESP8266 WiFi ESP-12E CH340 IoT D ...
ESP32 CAM Adapter Board
Rs. 352.00
Rs. 350.00 Rs. 352.00 (each ≥ 100 Units)
ESP32 CAM adapter Board with additional ...

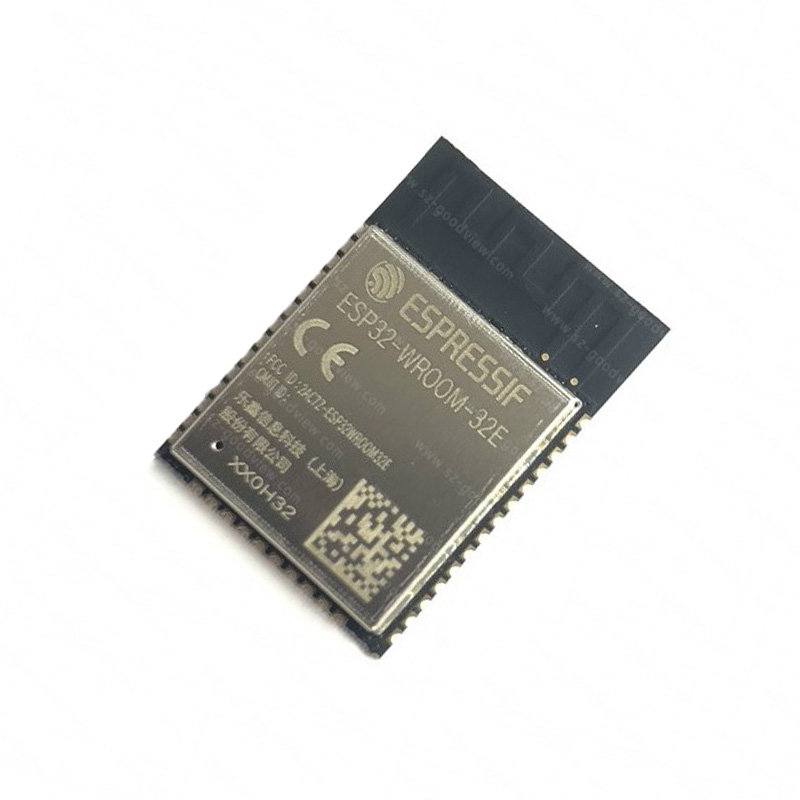

ESP32 WROOM 32E
